VR Example

This example project demonstrates the integration of the Genies Avatar SDK with Meta's SDK. The project will be buildable to Meta Quest 3.

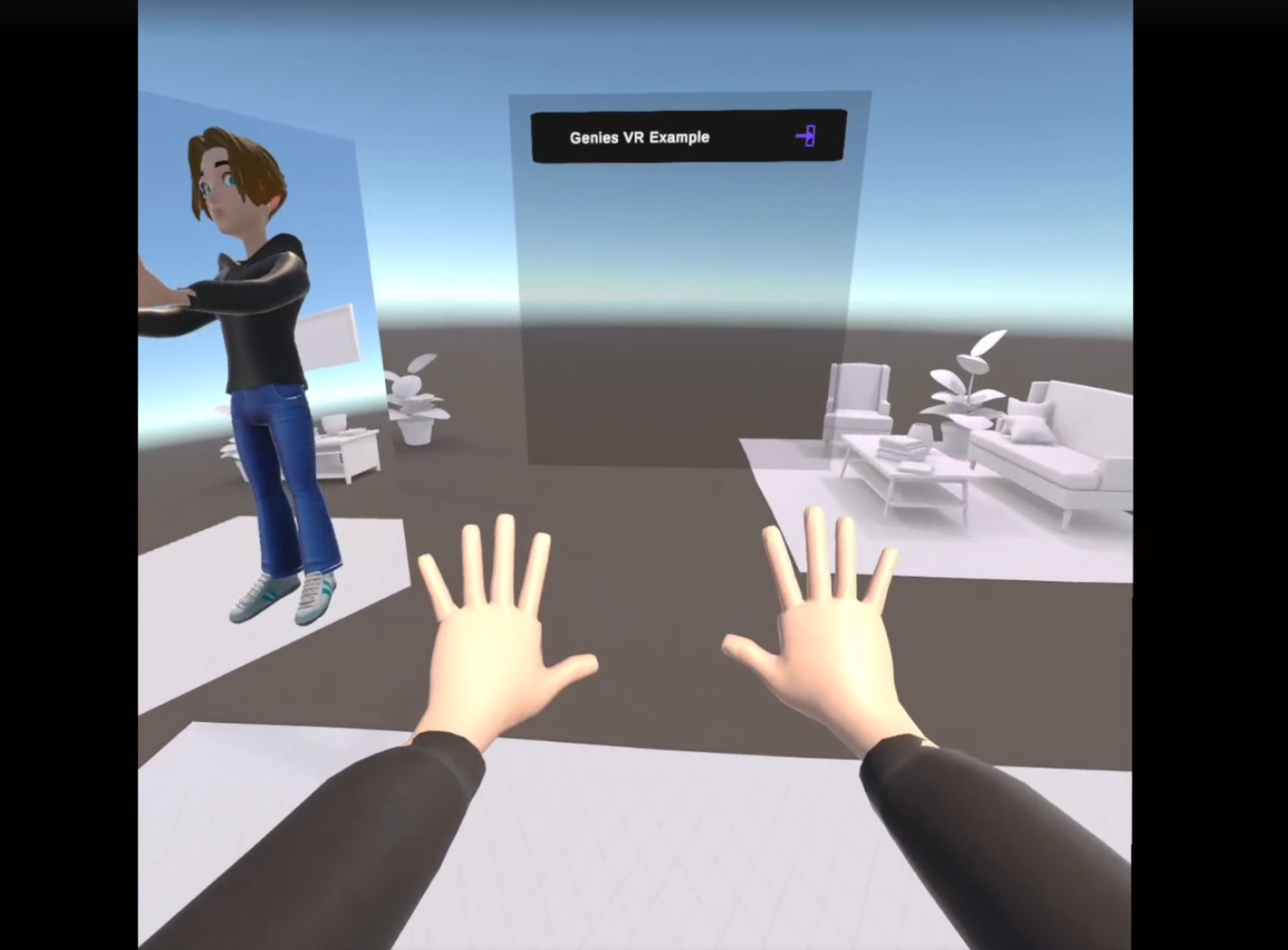

VR Example

Key Unlocks​

  • Leverages Genies login flow with UI configured to work in VR.
  • Features pre-configured character retargeting, set up to work especially for Genies Avatars.
  • Hides face and head geometry from the VR camera to prevent clipping artifacts.
  • Works with hand tracking as well as controllers.
caution

A VR-friendly avatar editor is not included in this example project. A developer should be able to adapt the Avatar Editor framework from the Genies SDK, if needed.

The VR Example project is available on GitHub:

https://github.com/geniesinc/genies-sdk-vr-example

Requirements​

  • Unity 2022.3.62f2 or later (including Unity 6)
  • Android build support installed via Unity Hub
  • Git installed and accessible to Unity/UPM
    • Required to fetch the Meta Movement SDK Git dependency
  • Network access on first open (some packages restore from GitHub)

Packages Included​

  • Unity packages (remote UPM dependencies, auto-downloaded; not redistributed):
    • URP (com.unity.render-pipelines.universal)
    • OpenXR (com.unity.xr.openxr)
    • XR Management (com.unity.xr.management)
  • Meta XR SDKs (remote UPM dependencies, auto-downloaded; not redistributed):
    • Core (com.meta.xr.sdk.core) 83.0.1
    • Interaction (com.meta.xr.sdk.interaction.ovr) 83.0.1
    • Movement (com.meta.xr.sdk.movement, UPM Git dependency)
  • Genies Avatar SDK (vendored UPM package; redistributed):
    • Core (Packages/com.genies.avatar-sdk.client/) 2.0.1

Getting Started​

  1. Open the project in Unity 2022.3.62f2 or later (including Unity 6).
  2. Wait for packages to resolve.
    • If you're on a fresh clone, Unity will need to fetch com.meta.xr.sdk.movement from GitHub (requires Git).
  3. If you haven't done so already, create a Genies account
  4. Customize an Avatar in the Avatar Starter sample scene
  5. Use the Bootstrap Wizard to configure the Genies Avatar SDK for an Android build.

Scenes​

  • Assets/Scenes/Main.unity: Core scene for testing. Use the UI to login, and wait for your Genie to spawn.
  • Assets/Scenes/StagingAndConfiguration.unity: Useful for authoring and testing Avatar retargeting.
  • Assets/Samples/Genies Avatar SDK/1.3.1/Avatar Starter Scene/Scene/AvatarStarter.unity: Non-VR scene from the Genies SDK, Useful for creating a Genie account and customizing an Avatar.

High Level Flow​

  • Assets/Genies VR Example/LoginCanvasVR.cs: initializes the Genies SDK and drives email-OTP login with a VR-friendly UI.
  • Assets/Genies VR Example/LoadAndBecomeMyAvatar.cs: loads the logged-in user's Avatar.
  • Assets/Genies VR Example/GeniesAvatarControllerVR.cs: hooks the loaded Avatar into Meta retargeting and applies VR-specific rendering tweaks (including head/face hiding).
  • Assets/Genies VR Example/GeniesCharacterRetargeterForMeta.cs: name-based bone mapping and retarget setup for Genies Avatars.

Building to Meta Quest 3​

info

This repo is intended to be buildable to Quest 3.

To build to Quest 3, follow the guidelines from the Meta Quest documentation: https://developers.meta.com/horizon/documentation/unity/unity-build/

Steps to Build​

Switch Build Platforms​

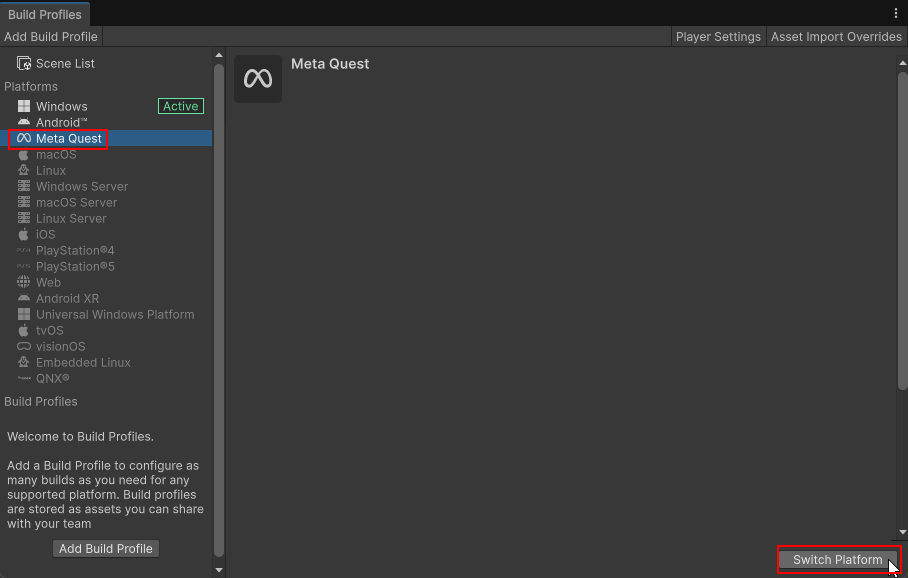

Open the Build Settings window. Download the necessary modules for Meta Quest platform and click the Switch Platform button at the bottom.

Build Settings

Open Meta Quest Settings​

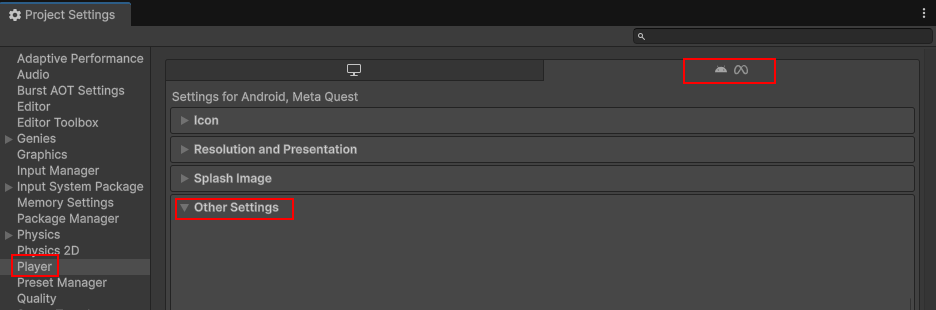

Then open the Project Settings window. Then select the Player option in the left side menu. Open the Settings for Android, Meta Quest tab.

VR Settings

Set the Entry Point​

Find the Application Entry Point setting and set it to Activity.

Entry Point

Notes​

  • Some Avatar scaling and stabilization behaviors are device-only (Editor vs on-device behavior can differ).
  • If VS Code search seems to "miss" Unity assets, check .vscode/settings.json workspace excludes.

Third-party Code Redistribution​

This repository does not redistribute any of the Meta XR SDK packages themselves. Core, Interaction, and Movement are remote dependencies that Unity's Package Manager will auto-download when you open the project.

The one Package Manager dependency that is redistributed is the Genies Avatar SDK package, which is directly included under Packages/com.genies.avatar-sdk.client/.

It does include and redistribute various Meta XR Samples, sourced from:

  • Meta XR Core SDK
  • Meta XR Interaction SDK
  • Meta XR Movement SDK

Licenses​

  • Review the applicable third-party licenses and notices included with the Meta packages and any bundled sample content.
  • The Genies Avatar SDK package also contains third-party notices under Packages/com.genies.avatar-sdk.client/Internal/**/ThirdPartyNotices.
  • The Genies Avatar SDK is governed by its own EULA license agreement.
