Load an Avatar

The Genies Avatar SDK allows developers to load multiple Avatars in a Unity project.

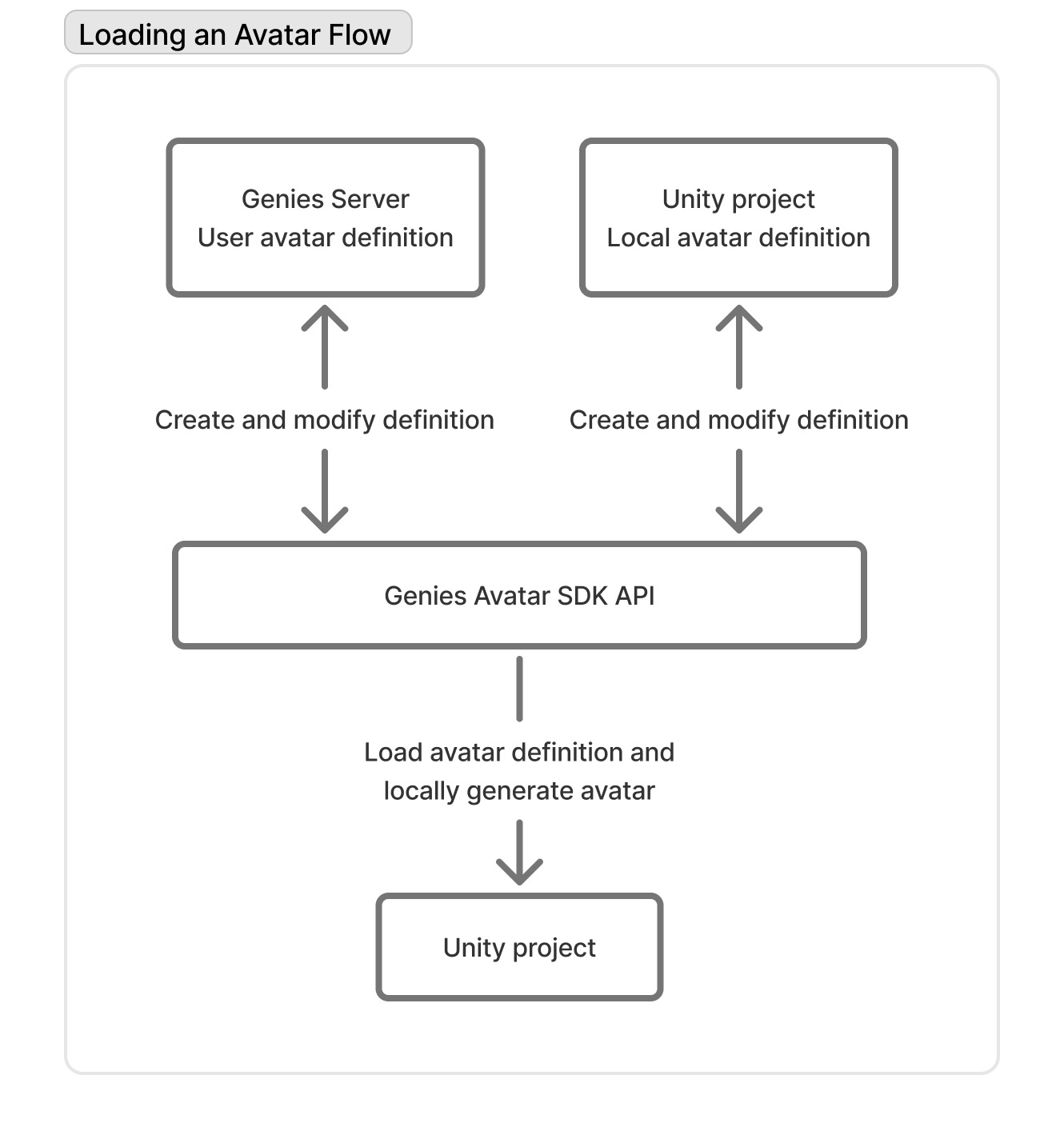

Loading an Avatar Flow

An Avatar is loaded by locally generating the Avatar model given an Avatar definition. This Avatar definition can be the user's global Avatar definition stored in the Genies servers or it can be a local Avatar definition stored in the Unity project.

info

Avatar's definition defines an Avatar's attributes like hair color, waist size, and clothed wearables. It's essentially a stored list of what the Avatar looks like that can be saved and loaded from.

Global vs Local

The difference between global and local Avatars is how the Avatar definition is stored. A user's global Avatar definition is stored in the Genies servers and is interoperable across all Avatar SDK projects. The local Avatar definition is stored in the developer's local project and is managed by the developer.

Loading a Global Avatar

The main use case for loading a user's global Avatar is to represent the player with a persistent Avatar that is interoperable between all Avatar SDK projects and Genies products.

Loading a Local Avatar

The use cases for loading a local Avatar are:

• Having multiple Avatars that represent NPCs in a scene.
• Creating player templates specific to your project.
• Managing your own persistent Avatar specific to your projects.

Load Avatar API

Genies Sdk Avatar Library

using Genies.Sdk;

The Genies.Sdk library contains methods to load a user's global Avatar or a default local Avatar.

Managed Avatar Object

ManagedAvatar avatar;

//Animator bound to the Avatar rig.
Animator animator = avatar.Animator;

//Root GameObject holding the Avatar hierarchy.
GameObject root = avatar.Root;

//The MonoBehaviour component attached to the Avatar's root GameObject.
//Provides a bridge between Unity's GameObject system and this ManagedAvatar wrapper.
ManagedAvatarComponent component = avatar.Component;

//Sub-root GameObject where the visual model is parented.
GameObject modelRoot = avatar.ModelRoot;

//Skeleton root Transform.
Transform skeletonRoot = avatar.SkeletonRoot;

//Function to dispose of the Avatar and cleanly remove it
avatar.Dispose();

The ManagedAvatar object is returned when an Avatar is loaded. It contains references to the Avatar's different components such as the root GameObject and Animator.

Load User Avatar Async Function

AvatarSdk.LoadUserAvatarAsync([string], [Transform], [RuntimeAnimatorController]);

This function will load a user's global Avatar object. It has three optional parameters for the root object's name, the root's parent transform, and the animator controller.

Load Default Avatar Async Function

AvatarSdk.LoadDefaultAvatarAsync([string], [Transform], [RuntimeAnimatorController])

This function will load a local default Avatar. It has three optional parameters for the root object's name, the root's parent transform, and the animator controller.

Load From Local Avatar Definition Async Function

AvatarSdk.LoadFromLocalAvatarDefinitionAsync(string);

This function will load a local Avatar using an Avatar definition in a JSON file given a profile ID string. The function returns a ManagedAvatar reference or null if it fails.

Load From Local Game Object Async Function

AvatarSdk.LoadFromLocalGameObjectAsync(string);

This function will load a local Avatar using an Avatar definition in a GameObject given a profile ID string. The function returns a ManagedAvatar reference or null if it fails.

Save Avatar Definition Locally Async

AvatarSdk.SaveAvatarDefinitionLocallyAsync(ManagedAvatar, string);

This function saves a given Avatar's definition to both a local JSON file for persistent data and a scriptable GameObject in the Assets > Genies > AvatarEditor > Profiles > Resources folder. It uses the given string as a profile ID.

note

The Avatar Editor also has functionality to save an Avatar's definition similar to this function.

Example

Load and Save a Local Avatar

This example will load and save a local Avatar given a profile Id.

using UnityEngine;
using Genies.Sdk;

public class LoadLocalAvatarTest : MonoBehaviour
{
    [SerializeField] private string profileId;
    private ManagedAvatar localAvatar;

    private void Start()
    {
        //Load the local avatar once the user is logged in
        if(AvatarSdk.IsLoggedIn)
        {
            LoadLocalAvatar();
            return;
        }
        AvatarSdk.Events.UserLoggedIn += LoadLocalAvatar;
    }

    private void OnDestroy()
    {
         AvatarSdk.Events.UserLoggedIn -= LoadLocalAvatar;
    }

    private async void LoadLocalAvatar()
    {
        Debug.Log("Loading Local Avatar");
        localAvatar = await AvatarSdk.LoadFromLocalAvatarDefinitionAsync(profileId);
        if(localAvatar != null)
        {
            //Save the local avatar once its loaded successfully
            Debug.Log("Local Avatar Loaded Successfully");
            SaveLocalAvatar();
        }
        else
        {
            Debug.Log("Local Avatar Loaded Failed");
        }
    }

    private async void SaveLocalAvatar()
    {
        Debug.Log("Saving Local Avatar");
        await AvatarSdk.SaveAvatarDefinitionLocallyAsync(localAvatar, profileId);
        Debug.Log("Local Avatar Saved");
    }
}

Load a User's Global Avatar

This example will setup two buttons to load a user's Avatar.

using UnityEngine;
using Genies.Sdk;

public class LoadUserAvatarTest : MonoBehaviour
{
    [SerializeField] private string avatarName = "MyAvatar";
    [SerializeField] private Transform parentTransform = null;
    [SerializeField] private RuntimeAnimatorController animatorController = null;

    private void Start()
    {
        //Load the user avatar once the user is logged in
        if(AvatarSdk.IsLoggedIn)
        {
            LoadUserAvatar();
            return;
        }
        AvatarSdk.Events.UserLoggedIn += LoadUserAvatar;
    }

    private void OnDestroy()
    {
         AvatarSdk.Events.UserLoggedIn -= LoadUserAvatar;
    }

    private async void LoadUserAvatar()
    {
        Debug.Log("Loading User Avatar");
        ManagedAvatar userAvatar = await AvatarSdk.LoadUserAvatarAsync(avatarName, parentTransform, animatorController);
        if(userAvatar != null)
        {
            Debug.Log("User Avatar Loaded Successfully");
        }
        else
        {
            Debug.Log("User Avatar Loaded Failed");
        }
    }
}

note

This example assumes the user is logged in before either button is pressed.
